Ship Basic Information
Builders Xingang Shipbuilding Heavy industry
Type Multi-purpose, Double Hull Box-shaped, Heavy Load Carrier
Flag Cyprus
Port of Registry Limassol
Classification DNV, +100A5, MULTIPURPOSE SHIP; Strengthened for Heavy Cargoes; Equipped for Carriage of Containers, DBC, DG, +MC, AUT
EDDI, Voluntary For this Ship type no max EEDI is allocated
EEXI & CII
IMO No. Year of Built Summer Deadweight Lightweight (mt)
Mauritius Pride II 9359935 2007 12,584 5,666





Ship Particulars

TYPE :                                              Multipurpose vessel with full tweendeck

CLASS :                                            DNV

IMO NO:                                          9359935

OFFCIAL NO:                                 9359935

BUILT:                                             2007 / 12 – at Tianjin Xingang Shipyard

CALLSIGN:                                     5BBT6

FLAG:                                               CYPRUS

LOA:                                                 139.96 m

LBP:                                                  133.50 m

BREADTH:                                      21.50 m

DEPTH MOULDED:                     11.65 m

DWAT:                                             12,583.90 (summer)

12,129.95 (winter)

DRAFT:                                            8.400 (summer)

8.225  (winter)

INTERNATIONAL GT/NT          9,938 / 4,265

PANMA CANAL GT/NT               9,938 / 4,265

SUEZ CANAL GT/NT                   10,401.38 / 8,582.99

Holds / Hatches:                        three (3) / three 3

Hatch Dimensions:                   Hold 1) 20.30 x  7.20 m (F)/ x 11.7 m (A)

Hold 2) 39.20 x 18.40 m

Hold 3) 25.90 x 18.40 m

Type of  Hatchcovers:             Hydraulic folding and lift away type

Tweendeck hatchcover:          Pontoon liftaway type

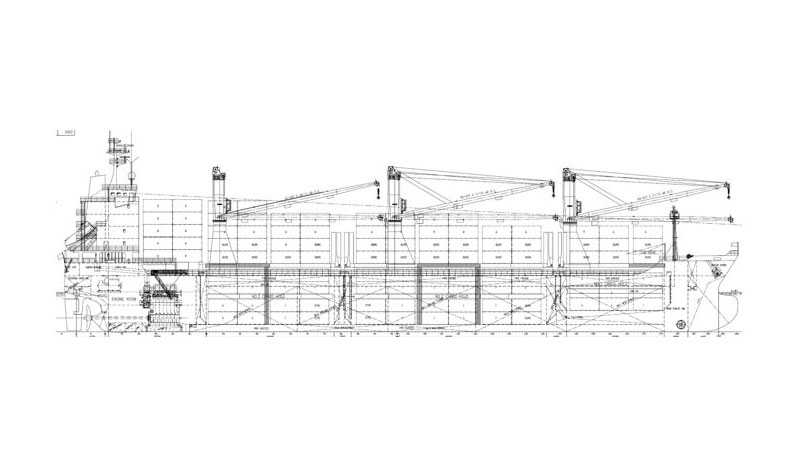

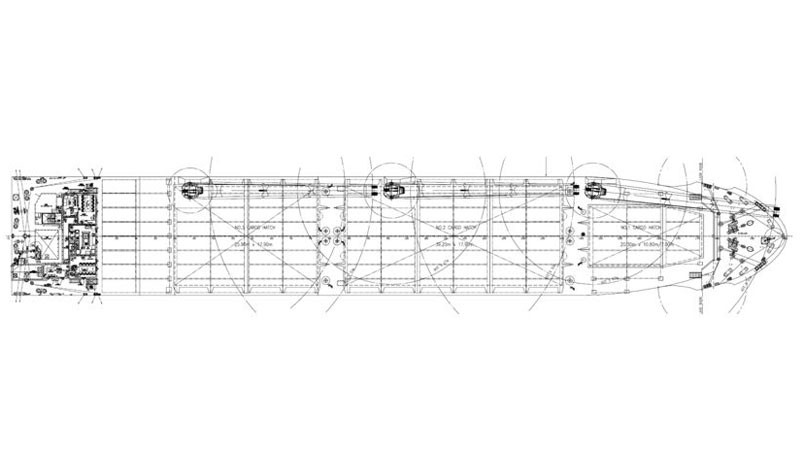

(opening/closing sequence see drawings)

Hold dimensions:

Floorspace

Hold 1                                      Tanktop                                             abt 220 sqm

Tweendeck                                                                                          abt 252 sqm

Weatherdeck hatch covers                                                               abt 274 sqm – Total abt 747 sqm

Hold 2                                      Tanktop                                             abt 694 sqm

Tweendeck                                                                                          abt 726 sqm

Weatherdeck hatch covers                                                               abt 726 sqm – Total abt 2,147 sqm

Hold 3                                      Tanktop                                              abt 456 sqm

Tweendeck                                                                                           abt 436 sqm

Weatherdeck hatch covers                                                                abt 436 sqm – Total abt 1,328 sqm

Heights:                                                                                                                                 HOLD 1                       HOLD 2                        HOLD 3

unobstructed height without TD                                                                                          8.60 m                        11.75 m                          11.75 m

height tank top to underside of TD                                                                                      3.54 m                        5.40/6.70 m                 5.40 m

(*HEIGHT IS FROM TANK TOP TO UNDERSIDE STACKING FOOTS)

Tweendeck pontoons have one (1) position in holds 1 and 3 and two (2) position in hold 2.

In hold 2 can tweendecks can be placed in lower position.

The Tweendeck pontoons can be used as vertical separation bulkheads.

In hold 2 are 2 locations and in hold 3 is one location where the vertical bulkheads can be erected.

The height of the holds are:

Hold 1 – 8.60 m,

Hold 2 – 11.75 m,

Hold 3 – 11.75 m.

Weight of tweendeck pontoons total and individually:

Hold 1:  16.0 mt, 30.0 mt, 30.0 mt (total 76.0 mt)

Hold 2:  41.0 mt, 31.0 mt, 31.0 mt, 31.0 mt, 31.0 mt, 41.0 mt (total 206.0 mt)

Hold 2:  34.5 mt, 29.0 mt, 29.0 mt, 34.5 mt (total 127.0 mt)



Hold capacities:

Hold No 1: 2,092 cbm

Hold No 1: 8,489 cbm

Hold No 1: 5,531 cbm                                            Total Holds capacity: 16,113 cbm

Deck strength:

Tanktop                                                                           18,0 mt/sqm

Tweendeck                                                                      3,0 mt/sqm

Weatherdeck hatchcovers  3,0 mt/sqm

Steel coil loading capacity:

Vessel can load steel coils depending on number of dunnage lines.

Cranes: – are situated portside

Type:    MacGregor    GL8020/7521/7022/6025/5029/4033-3

Two (2) cranes 80 mt holds 1 and 2 in full, hold 3 partly

One (1) crane 45 mt serving hold 3

Cranes 1 and 2 combinable to lift upto 160 mt serving hold 2

Spreader for working in Tandem on board

Container Capacity:

TEU     (20’x8’x8’6”)                total 696 of which 414 on deck and 282 in holds

FEU  (40’x8’x8’6”)    total 330 of which 193 on deck and 137 in holds

Container intake bss 14 mt homog laden 472 TEU

Reefer container capacity:

Vessel is fitted Reeferplugs situated on Deck and Cargo Holds.

138 Reefer plugs on board.

Stackweights:



Weatherdeck Hatchcovers       60 mt for TEU and 90 mt for FEU

Tweendeck Covers                     40 mt for TEU and 60 mt for FEU

Tanktop                                        120 mt for TEU and 150 mt for FEU



Container lashing material:
Hold: Deck:
TWISLOCK CV-8 ………………………560 TWISLOCK CV-8 ……………………..432
TWISLOCK CV-20 …………………….424 TWISLOCK CV-20 ……………………608
AUTOM. FIXING CONE AFC-1L …….424 AUTOM. FIXING CONE AFC-1L ……608
TURNBUCKLE TBS-3G/1………….…..68 TURNBUCKLE TBS-3G/1…………….450
LASHING BAR LB-11 short ……….…..34 LASHING BAR LB-11 short ………….396
LASHING BAR LB-11 long …………….34 LASHING BAR LB-11 long …………….28
BRIDGE FITTING H-2 ……………………8 BRIDGE FITTING H-2 ………………..…8

Speed / consumption:

ballast: abt 13.5 kn on abt 18 mt/day VLSFO 380 / abt 12 kn on abt 16.0 mt/day

laden:   abt 13.5 kn on abt 19 mt/day VLSFO 380 / abt 12 kn on abt 17.0 mt/day

No gasoil at sea for aux engines

Port consumption: idle abt 2.0 mt/d VLSFO 380 / with cranes working abt 4 mt/d excluding reefer container

Main Engine:             MAN 6S 46 MCC – MCR 7,860KW

Aux Engines:              3  x  6N21AL-DV   745 Kw

Tankcapcities:

Freshwater             179.8 cbm

Gasoil                     140.1 cbm

Fueloil (VLSFO)  1,137.4 cbm

Ballastwater        4,920.3 cbm

Compliance:

Freshwater generator capacity                            :    11 tons / day

Shaft generator                                                       :    N/A

Bowthruster                                                             :   YES

Suitable for grab discharge                                   :   YES

Holds free of obstructions                                     :   YES

Grain fitted                                                               :   YES

CO2 fitted                                                                  :   YES

APPENDIX B Fitted                                                :   YES

IMO fitted                                                                  :   YES

Hold ventilation                                                        :   YES

Holds fitted with sprinkler system                        :   YES – CH No 1

Is there A60 for engine room                                 :    YES

Ice class/strengthened                                             :    No

ITF covered                                                                :    No

Suez / Panama Canals fitted                                   :    YES

Great Lakes fitted                                                      :    No

Australian hold ladders                                            :    YES

Container fitted                                                          :    YES

Hatchcover panel sizes:

Maindeck                                PANEL NO

Hold 1                                     1/1                                    1/2                               1/3

L(top plate)                               7,213 m                           7,249 m                      6,235 m

B(top plate)                           11,400/7,386 m               11,700 m                    11,700 m

Maindeck                                PANEL NO

Hold 2                                     2/1                                  2/2                               2/3                               2/4                                    2/5                               2/6

L(top plate)                          5,890m                             7,287m                          6,150m                            6,970m                               7,287m                        5,890m

B(top plate)                          18,40m                             18,40m                          18,40m                            18,40m                               18,40m                        18,40m

Maindeck                                PANEL NO

Hold 3                                     3/1                                  3/2                               3/3                               3/4

L(top plate)                            5,890m                            7,287m                          6,845m                          6,240m

B(top plate)                           18,40m                            18,40m                           18,40m                         18,40m

Tweendeck                                PANEL NO

Hold 1                                     1                                                                      2                                                                      3

L                                              7,000m                                                          13,154m                                                            13,154m

B                                          10,443/6,663m                                              8,777/5,220m                                              8,777/5,220m

H                                            6,00     m                                                        6,00     m                                                             6,00 m

Tweendeck                                  PANEL NO

Hold 2                         4                             5                        6                             7                                8                                9

L                                 8,561m                  5,799m                5,799m                   5,799m                     5,799m                      8,561m

B                                17,780m                17,780m              17,780m                17,780m                    17,780m                    17,780m

H                                9,00m                     9,00m                 9,00m                    9,00m                        9,00m                      9,00m

Tweendeck                                PANEL NO

Hold 3                         10                              11                           12                               13

L                                 7,394m                   5,799m                   5,799m                   7,394m

B                                 17,780m                17,780m                  17,780m                 17,780m

H                                 9,00m                     9,00m                    9,00m                      9,00m



MAURITIUS PRIDE II – MAIN DECK HATCH COVERS AND TWEEN DECKS COVERS
OPENING SEQUENCE
OPENING INDIVIDUALLY SEQUENCE REMARK
HOLD 1 1/1 TO BE OPENED INDIVIDUALLY LIFT-AWAY TYPE
1/2 WITH 1/3 TO BE OPENED INDIVIDUALLY FOLDTITE TYPE
HOLD 2 2/1 WITH 2/2 TO BE OPENED INDIVIDUALLY FOLDTITE TYPE
2/5 WITH 2/6 TO BE OPENED INDIVIDUALLY FOLDTITE TYPE
2/3 WITH 2/4 TO BE OPENED INDIVIDUALLY PANEL 2/4 – PANEL 2/3 LIFT-AWAY TYPE
HOLD 3 3/1 WITH 3/1 TO BE OPENED INDIVIDUALLY FOLDTITE TYPE
3/3 WITH 3/4 TO BE OPENED INDIVIDUALLY PANEL 3/3 – PANEL 3/4 LIFT-AWAY TYPE
CLOSING SEQUENCE (the best way)
  CLOSING INDIVIDUALLY SEQUENCE REMARK
HOLD 1 PANEL 1/1 – PANEL 1/2 WITH 1/3
HOLD 2 2/1 WITH 2/2 TO BE OPENED INDIVIDUALLY PANEL 2/1 WITH 2/2 OR PANEL 2/5 WITH 2/6 – PANEL2/3 –PANEL 2/4 FOLDTITE TYPE
2/5 WITH 2/6 TO BE OPENED INDIVIDUALLY FOLDTITE TYPE
HOLD 3 PANEL 3/1 WITH 3/2 – PANEL 3/4 – PANEL 3/3



MAURITIUS PRIDE II – TWEEN DECK HATCH COVERS
  OPENING SEQUENCE CLOSING SEQUENCE REMARK
HOLD 1 PANEL 2 OR PANEL 3 – PANEL 1 PANEL 1– PANEL 2 OR PANEL 3
HOLD 2 OPENED INDIVIDUALLY FOR EVERY PANEL OPENED INDIVIDUALLY FOR EVERY PANEL NO SEQUENCE
HOLD 3 OPENED INDIVIDUALLY FOR EVERY PANEL OPENED INDIVIDUALLY FOR EVERY PANEL NO SEQUENCE
     = ALL DETAILS TO READ ABOUT GIVEN IN GOOD FAITH BUT WITHOUT GUARANTEE
